Distribution - Microbundle cables Cca
Distribution - Microbundle cables Cca
Multi Micro-bundles cable - up to 96 fibres
Mehr lesenBeschreibung
Beschreibung
Normen
-
InternationalEN 50399; IEC 60332-1; IEC 60754-1; IEC 60794; IEC 61034
-
NationalNF C 32-070/C2
This multi micro-bundles cable is designed for indoor/outdoor installation.
This cable has an outstanding fire behaviour.
This cable can be operated under a large temperature range.
Design

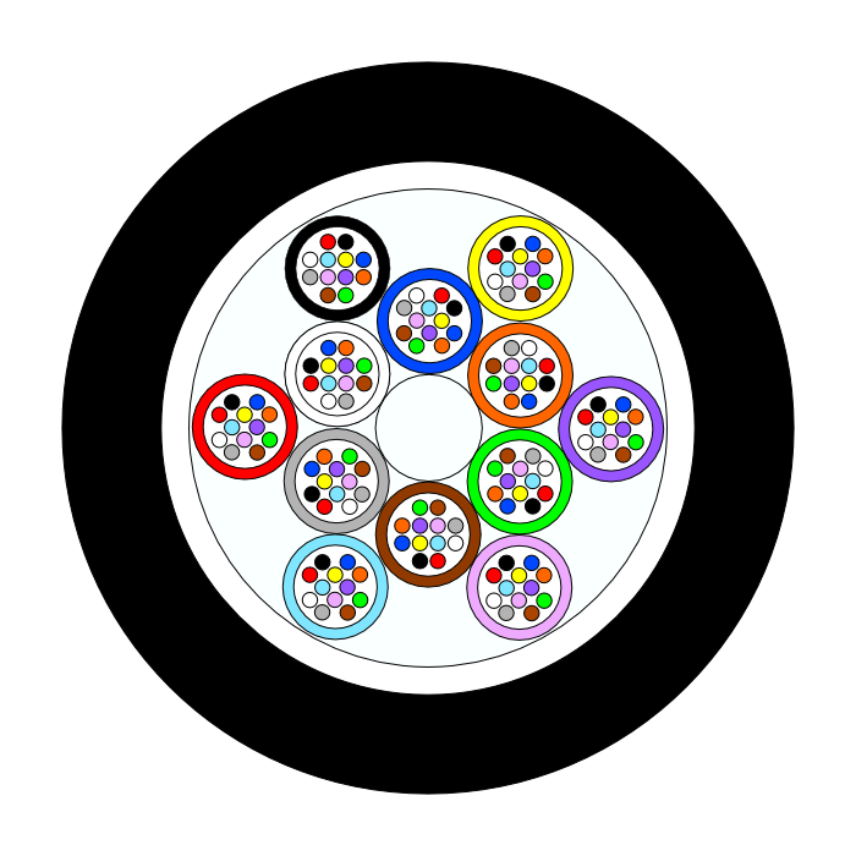

The MB LSZH* SP1880 cable has a central strength member (FRP : Fibre Reinforced Plastic), with max. 8 bundles of 12 fibres each. The design is reinforced by a layer of glass yarns and a LSZH* sheath.
Fibre type
The MB LSZH* SP1880 cable is available with singlemode and multimode fibres.
Technical performances
The multibundle cable performances are specified in the following tables.
Additional details
This cable is provided as a standard with a black sheath, other sheath colours are also available. Long exposure to UV with these other colours could generate colour fading.
Euroclass
B2ca s1 d0 a1
* LSZH: Low Smoke Zero Halogen.
Eigenschaften
Eigenschaften
Konstruktionsmerkmale
Konstruktionsmerkmale
Abmessungsmerkmale
Abmessungsmerkmale
Mechanische Eigenschaften
Mechanische Eigenschaften
Anwendungsmerkmale
Anwendungsmerkmale
Ressourcen
Ressourcen
Verkauf & Lieferung Informationen
Standard Marking
Nexans - FIBRE OPTIC CABLE - MB-B2 LSZH B2ca s1 d0 a1 SP1880 - XXxYY - FB - TN - metric
XX = Fibre Count
YY = Fibre Type
FB = Frameries, Belgium (manufacturing place)
